Open Preface

Preface

Do you ever get the feeling that you know a topic is important and that you should know well, but you only understand it superficially? Ever since I got into Rails, I've had that feeling with the Rails router.

Coming from ASP.NET, I knew the concept of routing and got comfortable with the router after reading the docs. However, at the back of my mind, I've always had that nagging feeling that I don't REALLY understand the complete picture. I could make the basic routes and resources to get by for the simple CRUD tasks, but whenever I wanted to do something complicated, I found myself fumbling in dark.

Well, after over a year of fumbling and trying to skim the docs and StackOverflow to just learn enough to get by, I decided to dig deeper and REALLY understand how Routing works in Rails.

I've tried to summarize everything I learned in this handbook. It's more than 12,000 words, so don't expect to finish it in one sitting. However, i

Open What is Routing?

What is Routing?

Before answering that, let me ask another question: What happens when someone visits your application? To keep things simple, let's ignore the load balancers, web servers, proxy servers, etc. and just assume the request directly hits your Rails application server.

What happens when that request reaches your application?

The very first thing that needs to happen is Rails needs to figure out which part of your codebase it should send (or route) that request to, so you can return a meaningful response to the browser. And here lies the answer to the question: What is Routing?

In simple words,

Routing is the process that determines what code in your application needs to run based on the URL of the incoming request.

Router is one of the first components to run when an HTTP request hits your application. It inspects the incoming URL and directs it to the appropriate Ruby code. Typically, this code will be an action method inside a Rails controller.

<p ali

Open The Rails Router

The Rails Router

In its essence, the routing system in Rails determines which code (specifically, an action method in a controller class) should be executed when the application receives an incoming HTTP request.

But how does a router map incoming URLs to controller actions?

First, you define the routes for your application in the config/routes.rb file. It's a plain Ruby file containing a specific domain specific language (DSL) that maps URL patterns to corresponding controller actions. The Rails router uses these rules to build out the routes and figure out where to direct the request.

Each route in the routes file specifies a pattern that the router will use to match incoming URL and also to generate a URL. The route can contain dynamic segments as variable placeholders.

Here's a simple route:

# config/routes.rb

get "courses/:title", to: "courses#show"

This simple route consists of a few different components.

1. get : HTTP verb

2. courses/:title : UR

Open Router Configuration

Router Configuration

The config directory contains the configuration files for your Rails application. When you create a new Rails application, the application generator creates a config/routes.rb file which contains all the routes for your application. This gives a central place to look for all the paths and pages supported by your application.

To configure the router, you add specific rules (called routes) in the routes.rb file. These routes tell the router how to map incoming URLs to specific controller actions.

All the routes for your application live in the config/routes.rb file. Here's the default content of this file:

Rails.application.routes.draw do
  get "up", to: "rails/health#show", as: :rails_health_check

  # Defines the root path route ("/")
  # root "posts#index"
end

It's a plain Ruby script. As you can see, it calls the draw method passing a block. The routes are configured inside the block.

If you're not much familiar with Ruby, this configu

Open Digging Deeper: Router Internals

Digging Deeper: Router Internals

In this section, we'll explore how Rails implements the beautiful routing DSL behind the scenes. This is going to be a bit technical, but nothing too complex, I promise.

Let's revisit the config/routes.rb file we saw earlier.

When you create a new Rails app, it automatically creates a /routes.rb file in the config directory. All it contains is a single call to the draw method on the object returned by the Rails.application.routes method. Additionally, it takes a block containing the routes for your application.

Rails.application.routes.draw do
  # application routes go here...
end

To understand how the above method works, we need to take a short detour and understand Ruby's instance_exec method defined on the BasicObject class.

---

Understanding How instance_exec Works

The instance_exec method take

Open Match Method

Understanding the Match Method

In this section, we will explore how the match method works behind the scenes. Once you really understand the match method and its options, the rest of the routing methods and shorthands become very easy to understand.

The most basic way to define routes in Rails is to use the match method, which forms the core of the Router DSL. To 'really' understand the Rails Router API, it's essential to learn this method. All helper methods like get and post use match under the hood. Additionally, most of the shorthand syntax such as scopes and constraints use the options provided by match behind the scenes.

For example, the following route instructs Rails to direct any POST request with the URL /posts/publish to the publish action method on the PostsController class.

match "posts/publish/:id", controller: "posts", action: "publish", as: "publ

Open Dynamic Segment Keys

Dynamic Segment Keys

You may have seen route paths such as posts/:id. If you're new to routing, you might be wondering why there are symbols inside the URL. These symbol-like terms are called segment keys, which make your URLs dynamic. In this lesson, we'll learn about the dynamic segment keys.

Instead of hard-coding a URL which matches exactly one URL, segment keys allow you to match more than one URL. You can access the values of those keys in the params hash, e.g. params[:id].

Consider this route:

get "profile", to: "pages#profile"

As you can guess, when the Rails application receives a request on the /profile page, it will direct that request to the profile method on the PagesController class.

At the same time, Rails provides the controller and action name in a hash called params in the controller.

# controllers/pages_controller.rb

class PagesController < ApplicationController
  def profile
    puts params # {"controller"=>"pages", "ac

Open Query Strings

Query Strings

A query string is indicated by the first ? in the URL. It is used to pass additional data to the server.

http://example.com/admin?true

Rails allows you to handle query strings in a similar way to dynamic segments: by making them accessible in the params hash.

Consider the following route:

get 'photos/:id', to: 'photos#show'

If the user agent sends an HTTP request to the photos/1?hue=10, the params hash will contain:

params = {
  id: 1,
  hue: 10,
  # ...
}

In the next lesson, we'll learn about adding constraints to dynamic segments.

---

If you have any questions or feedback, didn't understand something, or found a mistake, please leave a comment below or send me an email. You can also subscribe to my blog to receive future posts via email.

Open Segment Constraints

Segment Constraints

Sometimes you may want to add some constraints on the dynamic segments in a route. This is where the constraints option that we saw earlier, comes into the picture. You can add restrictions on the segment keys by providing a constraint.

The following route matches only those URLs where slug is a word consisting of letters between a to z.

get '/posts/:slug', to: 'posts#show', constraints: { slug: /[a-z]+/ }

# or you can also use a shorthand
get '/posts/:slug', to: 'posts#show', slug: /[a-z]+/

Here's another example: you may want to restrict the id to three digits. For this, you can pass the :constraint option as follows:

get 'images/:id', to: 'images#show', constraints: { id: /\d{3}/ }

This route would match paths such as /images/293, but not /images/xyz.

The above route can be succinctly expressed by passing the segment key itself.

get 'photos/:id', to: 'photos#show', id: /\d{3}/

Custom Constrain

Open Named Routes

Named Routes

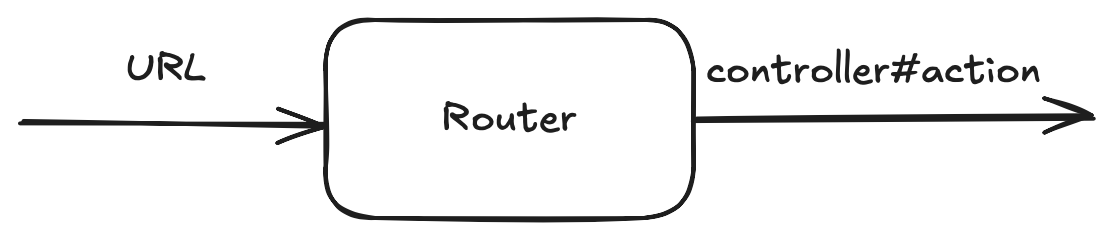

So far, we have seen only one responsibility of the router: to match an incoming HTTP request to a route defined in the routes.rb file and route it to the piece of code that handles it, which is a corresponding action method on a controller class.

• Input: HTTP Request URL
• Output: Controller and Action

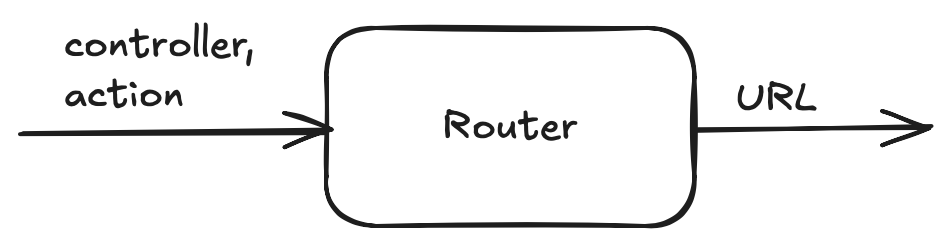

However, the Rails router also works in the other way. That is, given the controller and action, it can generate the URL for that route.

• Input: Controller and Action
• Output: HTTP Request URL

In addition, you can also name a route and use it to generate the matching URL. Given the route name (along wit

Open Override ID Param

How to Override the Named Route Parameter ID

In the previous posts, we've learned about the concepts of dynamic segments as well as named routes in Rails. Naming a route generates two helper methods which can be used to generate the route URL, whereas a dynamic segment allows us to create dynamic routes, where the parts of the URL can vary.

In this post, we'll combine these two concepts. Consider the following named route which contains a dynamic segment called :id:

# config/routes.rb
get "item/:id", to: "items#show", as: "item"

When the application receives a request on /item/4, it forwards it to the ItemsController#show action. You can access the ID of the post as follows: params[:id].

To generate the item URL, you can use the named route helper methods item_path and item_url, passing the ID of the post.

item_path(id: @item.id) # /item/10

In this example, @item is an instance of a Rails model.

Typically, most of the time you'll work wi

Open Resourceful Routes

Resourceful Routes

Resourceful routing allows you to quickly declare all of the common routes for a given resource.

The concept of resources is very powerful in Rails. With a single call to a method named resources, Rails will generate seven different routes for index, show, new, create, edit, update, and destroy actions, saving you a lot of typing.

But saving a few keystrokes is just the cherry on top. The biggest benefit of using resourceful routing is that it provides a nice organizational structure for your Rails application, and helps you figure out how to name and organize the controller classes and action methods.

Not only that, resourceful routing imposes certain constraints on your project which makes most Rails applications consistent and familiar. When a developer says that they have a post resource, another can safely assume (most of the time) that they have a PostController class with actions like create, show, edit, new, ... along with a Post model

Open Custom Routes

Non-Resourceful Custom Routes

A single call to resources in the routes.rb file declares the seven standard routes for your resource. **What if you need additional routes?*

As we saw in the previous lesson, resourceful routes in Rails provide you with a nice set of named routes which are mapped to the common, standardized URL patterns. However, there might be situations when you want to veer off the beaten path and create custom routes in addition to the RESTful ones.

Don't worry, Rails will let you create custom routes that don't fit one of the above seven routes with the member and collection routes. The member route only applies to a single resource, whereas collection will apply to a group of resources.

But first, do you really need them at all?

Before you continue, keep in mind that a better alternative to adding custom, non-resourceful routes is to introduce a new resourceful controller. Not only this keeps your code clean, but gives you better domain model.

Here'

Open Nested Resources

Nested Resources

Imagine you're building a course platform, where each course has multiple lessons.

• Each lesson is associated with a particular course.
• Whenever you perform an operation on a lesson (create, read, update, delete), you're working in the context of an existing course.
• When working with a lesson, you're really working with a course-lesson pair.

Basically, the lesson resource is nested under the course resource.

In a Rails routing file, you can represent the relationship between a course and its lessons as follows:

# config/routes.rb
resources :courses do
  resources :lessons
end

This instructs the Rails router to generate regular resourceful routes for the course resource, and generate nested, resourceful routes for the lesson resource.

Let's check the routes generated for the lesson resource.

$ bin/rails routes -g lesson
                Prefix Verb   URI Pattern                                    Controller#Action

Open Shallow Nested Routes

Shallow Nested Routes

In the previous post, we learned how nested resources work. Consider the following route configuration:

# config/routes.rb
resources :courses do
  resources :lessons
end

It generates the following routes:

$ bin/rails routes -g lesson
                Prefix Verb   URI Pattern                                    Controller#Action
        course_lessons GET    /courses/:course_id/lessons(.:format)          lessons#index
                       POST   /courses/:course_id/lessons(.:format)          lessons#create
     new_course_lesson GET    /courses/:course_id/lessons/new(.:format)      lessons#new
    edit_course_lesson GET    /courses/:course_id/lessons/:id/edit(.:format) lessons#edit
         course_lesson GET    /courses/:course_id/lessons/:id(.:format)      lessons#show
                       PATCH  /courses/:course_id/lessons/:id(.:format)      lessons#update
                       PUT    /courses/:course_id/lessons/:id(.:format)      less

Open Route to Rack

Route an Incoming URL to a Rack Application in Rails

TL;DR: You can route an incoming HTTP request to a valid Rack endpoint using the following syntax:

match '/url', to: RackApp

# OR

mount RackApp, at: "/url"

# OR

mount RackApp => "/url"

Let's dig in to learn why, what, and how.

This post won't make much sense if you don't know what Rack interface (or protocol) is, what problem it's designed to solve, and what a Rack-compliant application looks like. This post is a good starting point.

---

Why You Want to Route to a Rack App

We know that the Rails router can send an incoming HTTP request to an action method on a controller class. For example, the following route dispatches the request to /profile to the profile action on the PagesController class.

# config/routes.rb
get "profile", to: "pages#profile"

Sometimes, you may want to route a particular URL (or a se

Open Routing Concerns

Routing Concerns

Sometimes, you have common routes that you want to reuse inside other resources and routes. For example, imagine that your application has two resources, photos and posts.

# config/routes.rb

resources :posts
resources :photos

Next, you decide that you want to allow users to add comments under both posts and photos. That means you'll want to nest comments under both resources as follows:

# config/routes.rb

resources :posts do
  resources :comments
end

resources :photos do
  resources :comments
end

This is simple enough. But, you can imagine this can get repetitive if you have few more 'commentable' resources, i.e. resources that can be commented.

To avoid this repetition, Rails lets you to declare these common routes (concerns) to reuse inside other resources and routes. For this, you'll use the concern method as follows:

# config/routes.rb

concern :commentable do
  resources :comments
end

resources :p

Open Root Route

Add Home Page with a Root Route

Your application's home page is one of the most important and highly trafficked page. This is the page many visitors will encounter the first time they visit your application.

The root helper method configures the home page of your Rails app.

Rails.application.routes.draw do
  # Defines the root path route ("/")
  root "application#home"
end

The root indicates the application URL '/', without any path, such as /users.

The router parses the routes top-down and stops search as soon as it finds a matching route. Hence, it's recommended that you should put the root route at the top of the routes file. It is the most popular route which should be matched first.

Since most visitors will be visiting the application by making a GET request to your application URL, the root route only handles and routes HTTP GET requests.

You can also use the root helper inside a namespaces and scope.

namespace :admin do
  root to: "admin

Open Redirects

How to Redirect Requests

The redirect helper method lets you redirect any path to another path or URL. For example, the following route redirects all the incoming requests on /images to /photos.

get "/images", to: redirect("/photos")

# OR

get "/images" => redirect("/photos")

If the older route contained dynamic segments, you can reuse them with interpolation, as follows:

get "/images/:tag", to: redirect("/photos/%{tag}")

By default, the Rails router uses HTTP status 301 Moved Permanently for redirecting.

The HyperText Transfer Protocol (HTTP) 301 Moved Permanently redirect status response code indicates that the requested resource has been definitively moved to the URL given by the [Location](https:

Open Resources: Where to Go From Here

Resources: Where to Go From Here

Thanks for reading this handbook. I hope you enjoyed reading it and have learned a thing or two about the Rails Router.

If you want to learn more about routing, here're some additional resources.

• Rails Routing from the Outside In
• Rails API: The Mapper Class
• Routing in Laravel (to learn routing from a different framework's perspective)
• Roy Fielding's Dissertation
• Different approaches to HTTP routing in Go

If you'd like to stay in touch, please subscribe my blog Write Software, Well.
